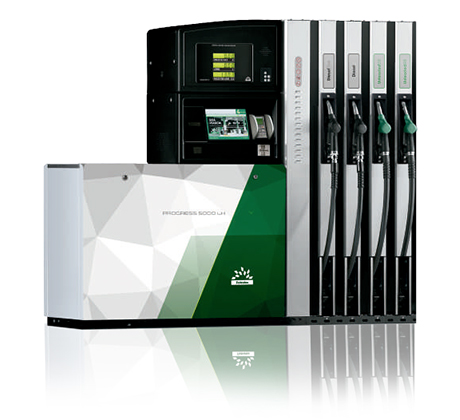

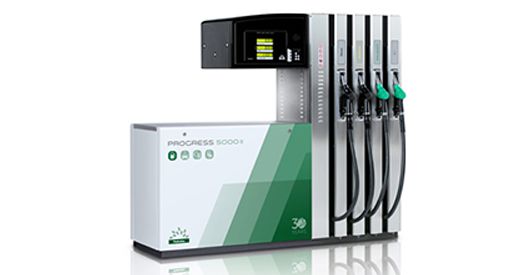

Petrotec P5000
The hanging-hose model from the Progress Retail Line offers the best ratio between maintenance cost per hose, protection and uncluttered access to the dispenser, ensuring a smooth user experience. It can have up to four fuel grids, eight hoses and a maximum flow rate of 130L/min. Multimedia and payment systems are also available. A great choice for those who privilege a great design, reliability, performance and low maintenance cost.
Standart Features
- Construction Frame: Galvanised Steel; Double Coated Painting
- Housing: Stainless Steel
- Panels: Aluminium; Double Coated Painting Admission
- Suction: High Performance Compact Gear Pump RTF
- Pressure: Submersible Pump
- Meter: Positive Displacement Meter PTF, with Pulse Generator and Integrated Electronic Calibration
- Filters: Reusable Stainless Steel, 100 μm mesh and 30μ for diesel or 10μ for gasoline
- Motor: Ex-Proof, Single/ Three-Phase, 50/60 Hz w/ Internal Thermal Protection
- Calculator: eMC² Electronic Modular Calculator, 2nd Generation
- Hose: Ø16, 19, 21, 25 mm (EN1360/EN13483) (VR2 Approved)
- Nozzle: Automatic ZVA2
- Fuel Types: Petrol | Diesel | Biodiesel | Ethanol (E85) | AdBlue wo/heating (1)
- Flow Rates: 10, 40, 80, 130 L/min | Up to 4 Products/8 Hoses
- Certificates: ATEX; MID
Options
* Speed Selector (40/80 L/min)
* Vapour Recovery w/Monitoring
* Breakaway Couplings
* Voice Module
* Automatic Temperature Compensation
* Custom Nozzles and Sleeves
* Electro-mechanical Totalizers
* Single/ Three-Phase Motor
* Flexible Riser Connection
* TAG Reader
* OPT*
* Circuit Breaker
* Multimedia
* Vapour Recovery Stage II
* Satellite Ready (1 per side)
* Lifting Solution (for easier handling)
* Hose Retraction System
Note: * Integration with wide range of terminals
Communication
1) Petrotec
2) IFSF IP
3) HDX 2WI (Gilbarco)
4) EPS5
5) IFSF Lon v1.xx (Converter)
6) DART
7) Pulse Interface
8) IFSF Lon v2.xx
9) Dunclare
10) ER3
11) HDX 485 (Gilbarco)
12) Pumalan
